Cable and phase identification on de-energized cables

FUNCTIONS
JUPITER X allows :

• Cable identification (low or medium voltage)
• Phase identification in short-circuit mode and open circuit mode
• continuity in short circuit mode and open circuit mode

USE PRINCIPLE
JUPITER X consists of a removable transmitter and a Receiver, both can be used on the electric network, de-energized and earthed.

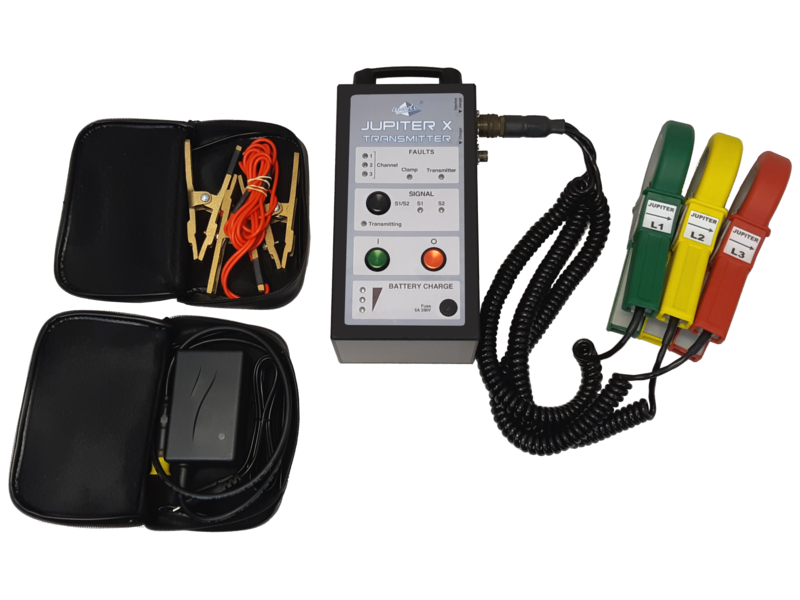

The transmitter must be connected in a substation,on a MV cell or a LV feeder, using the 3 current injection clamps connected to each phase, excluding the outer shield.

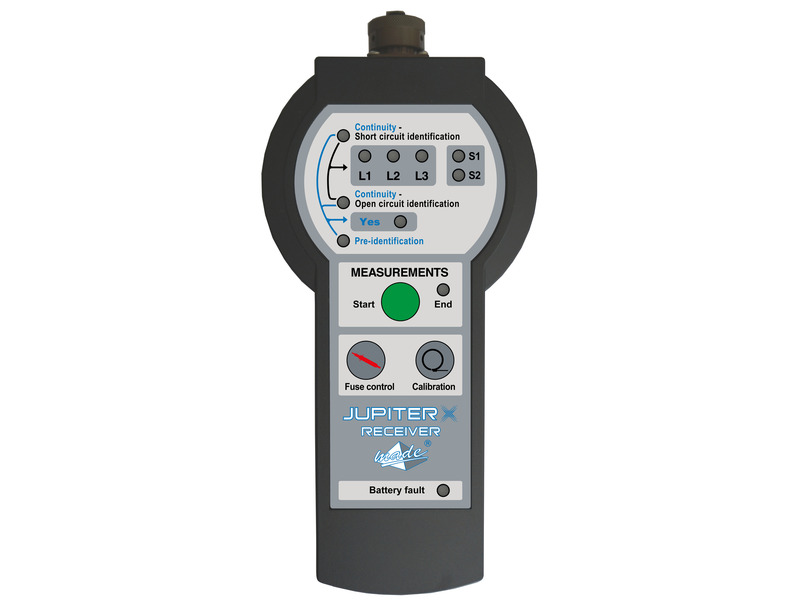

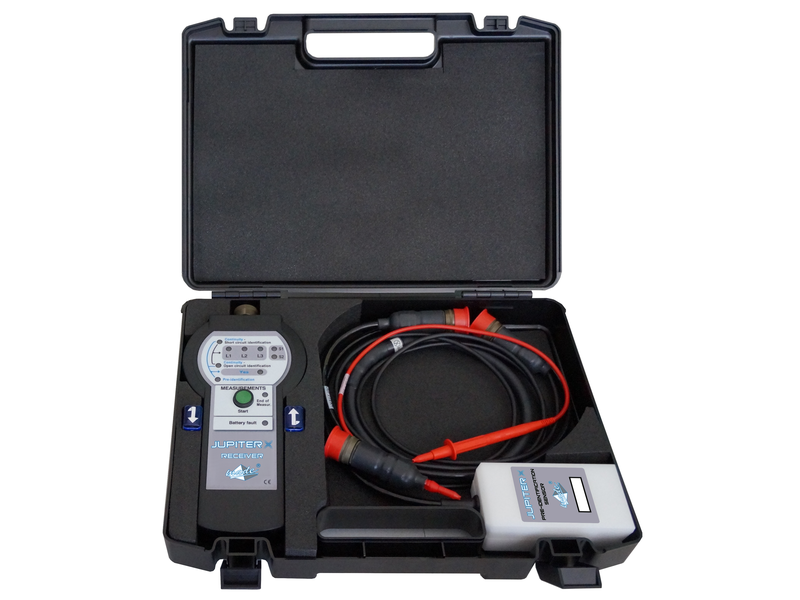

The receiver allows cable identifying, continuity checking and phase identifying in open circuit or short circuit modes.

• Simplified ergonomics : continuity and phases identifying in open circuit mode are realized in a single handling
• Single sensor for identifying whatever the cable type
• Enhanced performances on impregnated paper cables

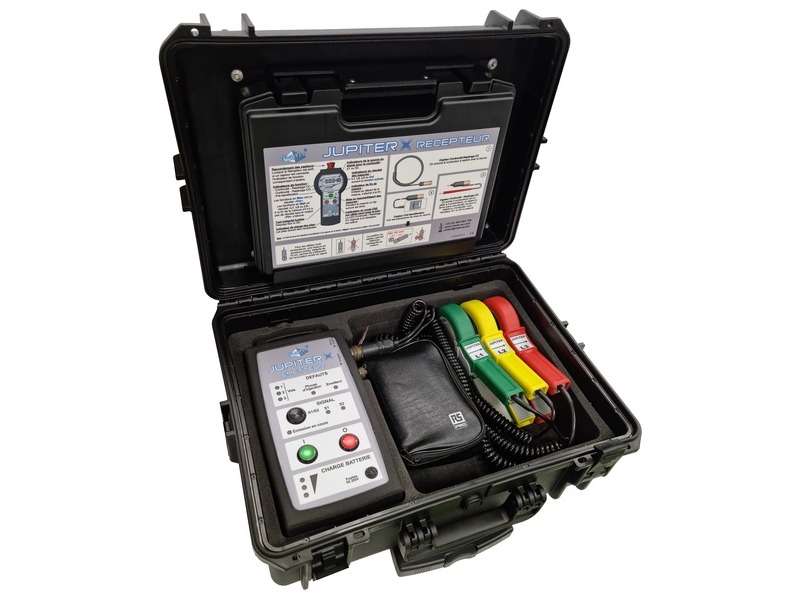

• Storage of accessories and suitcase volume improved

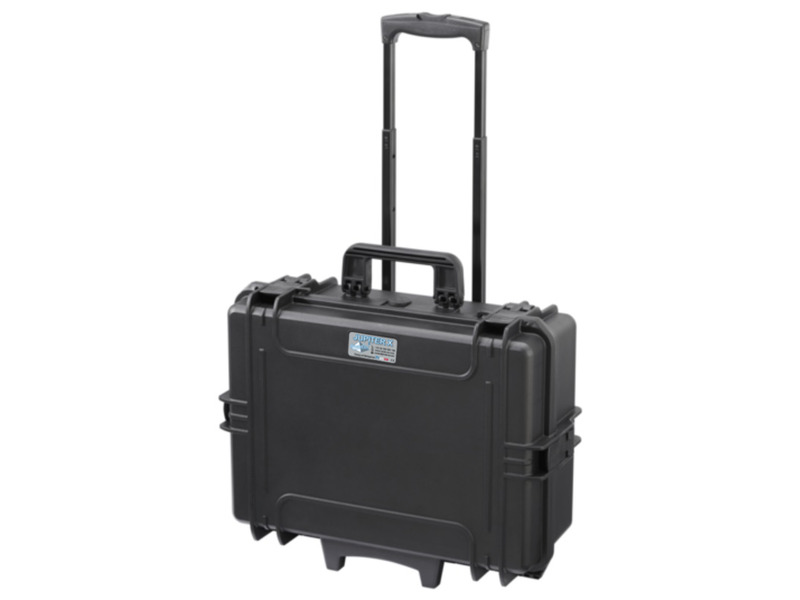

• Trolley suitcase
• Embedded self-diagnosis functions

DOWNLOAD

• Consult us
